3KD
(Triangular shank (Type 6.5)(Type 10)(Type 13))
The actual product may differ from the displayed image.

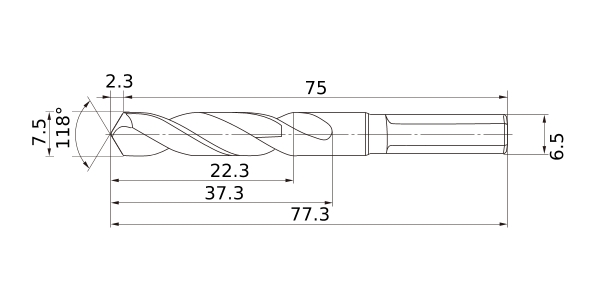

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | |
Unit of Length | M |
DC | 7.5 |
DCON | 6.5 |
SIG | 118° |
LF | 75 |
OAL | 77.3 |
LCF | 37.3 |
PL | 2.3 |
Effective Cutting Edge | 2 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.022 |
Type of Coolant | External |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
