Drills >GSD >GSDD0400

Drills

GSD
（TiN, Straight shank）

GSDD0400

Product Information

  • Original manufacturing and coating technology for improved performance.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

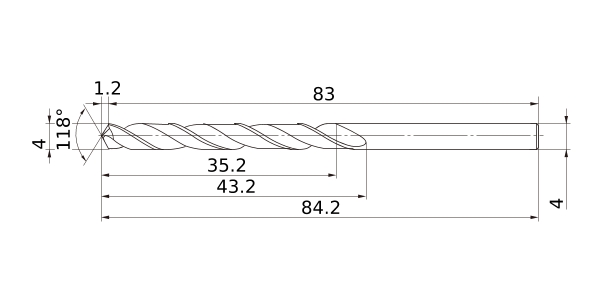

Unit of Length M
DC 4
DCON 4
SIG 118°
LF 83
OAL 84.2
LU 35.2
LCF 43.2
PL 1.2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.018
Type of Coolant External
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition
