Drills >GTD >GTDD1850M2

Drills

GTD
（TiN）

GTDD1850M2

Product Information

  • Original manufacturing and coating technology for improved performance.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

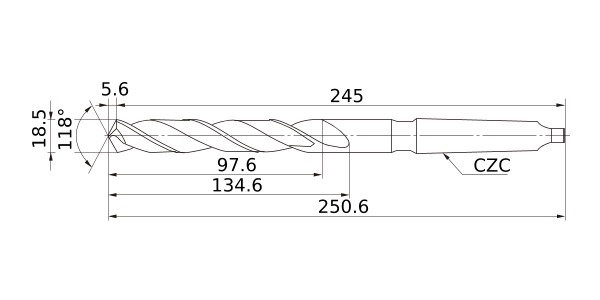

Unit of Length M
DC 18.5
SIG 118°
LF 245
OAL 250.6
LU 97.6
LCF 134.6
PL 5.6
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.033
M.T.NO. 2
CZC MT.2
Type of Coolant External
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition
