  • Excellent chip disposal.
  • Helical through coolant hole enables high speed machining (MZS type).

The actual product may differ from the displayed image.
For details, please check the dimensions below.

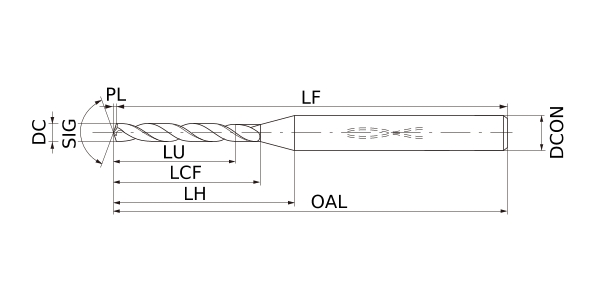

Type1 [Expand]

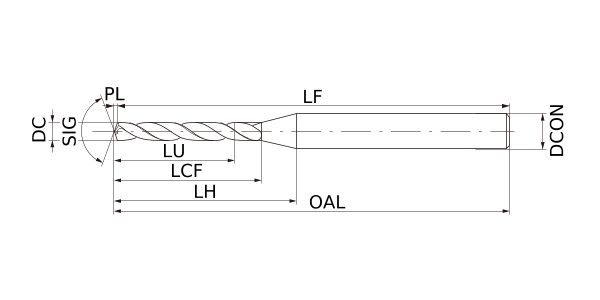

Type2 [Expand]

Type3 [Expand]

Type4 [Expand]

  1 2 3 4 5 6 7 8 9 10
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
MZE0100SB Type2 CAD External   Carbide VP15TF
MZE0110SB Type2 CAD External   Carbide VP15TF
MZE0120SB Type2 CAD External   Carbide VP15TF
MZE0130SB Type2 CAD External   Carbide VP15TF
MZE0140SB Type2 CAD External   Carbide VP15TF
MZE0150SB Type2 CAD External   Carbide VP15TF
MZE0160SB Type1 CAD External   Carbide VP15TF
MZE0170SB Type1 CAD External   Carbide VP15TF
MZE0180SB Type1 CAD External   Carbide VP15TF
MZE0190SB Type1 CAD External   Carbide VP15TF
MZE0200MA Type1 CAD External   Carbide VP15TF
MZE0200SA Type1 CAD External   Carbide VP15TF
MZE0210MA Type1 CAD External   Carbide VP15TF
MZE0210SA Type1 CAD External   Carbide VP15TF
MZE0220MA Type1 CAD External   Carbide VP15TF
MZE0220SA Type1 CAD External   Carbide VP15TF
MZE0230MA Type1 CAD External   Carbide VP15TF
MZE0230SA Type1 CAD External   Carbide VP15TF
MZE0240MA Type1 CAD External   Carbide VP15TF
MZE0240SA Type1 CAD External   Carbide VP15TF
D1 IC DMIN CUTDIA DAXX DC DC1 DC2 ld LU BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 L3 LBB CDX L20 LDRED L15 LCF L2 LH L19 LPR L1 L L24 FLGT LF CBDP OAL D4 DCON D2 DCX D5 DN DCSFMS BD BD1 BD2 BD3 BD4 BD5 D8 DAH DAH1 DAH2 DCCB CNT D9 B L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX ap APMX HTB DCN CDI DCINX BDX CWX LBX RR GAMF GAMO LAMS ALF FHA KRINS STA WT R PRFRAD RE RE1 RE2 RE3 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
1 2 2.2 140° 6.2 8.2 55 55.2 2 30° 2
1.1 2 2.4 140° 7.2 9.2 55 55.2 2 30° 2
1.2 2 2.6 140° 8.2 9.2 55 55.2 2 30° 2
1.3 2 2.8 140° 8.2 9.2 55 55.2 2 30° 2
1.4 2 3.1 140° 9.3 10.3 55 55.3 2 30° 2
1.5 2 3.3 140° 9.3 10.3 55 55.3 2 30° 2
1.6 2 3.5 140° 10.3 10.3 55 55.3 2 30° 2
1.7 2 3.7 140° 10.3 10.3 55 55.3 2 30° 2
1.8 2 3.9 140° 11.3 11.3 55 55.3 2 30° 2
1.9 2 4.1 140° 11.3 11.3 55 55.3 2 30° 2
2 3 6.4 140° 16.4 16.4 55 55.4 2 30° 2
2 2 4.4 140° 12.4 12.4 55 55.4 2 30° 2
2.1 3 6.7 140° 16.4 16.4 55 55.4 2.1 30° 2
2.1 2 4.6 140° 12.4 12.4 55 55.4 2.1 30° 2
2.2 3 7 140° 18.4 18.4 55 55.4 2.2 30° 2
2.2 2 4.8 140° 13.4 13.4 55 55.4 2.2 30° 2
2.3 3 7.3 140° 18.4 18.4 55 55.4 2.3 30° 2
2.3 2 5 140° 13.4 13.4 55 55.4 2.3 30° 2
2.4 3 7.6 140° 20.4 20.4 55 55.4 2.4 30° 2
2.4 2 5.2 140° 16.4 16.4 55 55.4 2.4 30° 2
  1 2 3 4 5 6 7 8 9 10

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
