MVX1950X4F25

Product Information

  • Ideal combination of outer CVD insert and inner PVD insert.
  • High rigidity body that enabled L/D=6 deep hole machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M

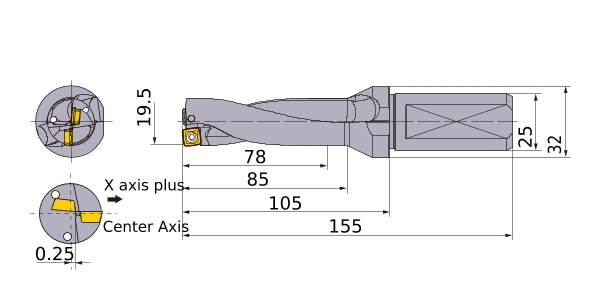

DC 19.5
DCON 25
DCSFMS 32
OAL 155
LPR 105
LU 78
S10 0.25
LBX 85
ld 4
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
Effective Cutting Edge 1
Type of Coolant Internal
