External Cutting >PCBN >PCBNR2020K12

External Cutting

PCBN


PCBNR2020K12

Product Information

  • Lever lock type.
  • ISO standard.
  • Various holder shapes.
  • Suitable for light to heavy cutting.
  • Economical negative insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

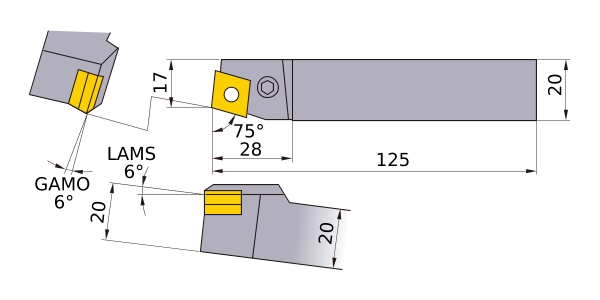

B 20
KAPR 75°
LF 125
LH 28
WF 17
H 20
HF 20
Peripheral effective cutting edge count: ZEFP 1
Insert Number CN__1204
2D Model (DXF)
CAD data name Download
PCBNR2020K12
