External Cutting >SDJE >SDJER1616H15

External Cutting

SDJE


SDJER1616H15

Product Information

  • Screw-on type
  • High rake and good sharpness.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

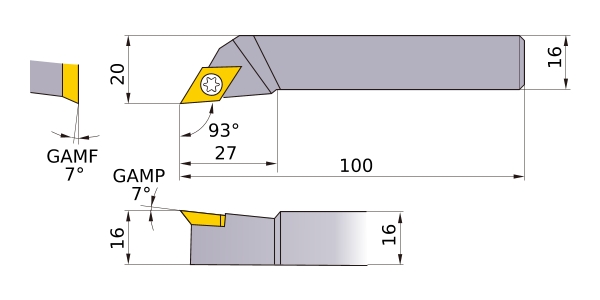

B 16
KAPR 93°
LF 100
LH 27
WF 20
H 16
HF 16
Peripheral effective cutting edge count: ZEFP 1
Insert Number DE__1504
2D Model (DXF)
CAD data name Download
SDJER1616H15
