Face Cutter > FE404

Face Cutter

FE404
（HIGH FEED CUTTING FOR CAST IRON）

  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

  • 21°positive insert.
  • High rake and high relief angle.
  • Suitable for light alloy machining.
  • Easy tool exchange.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

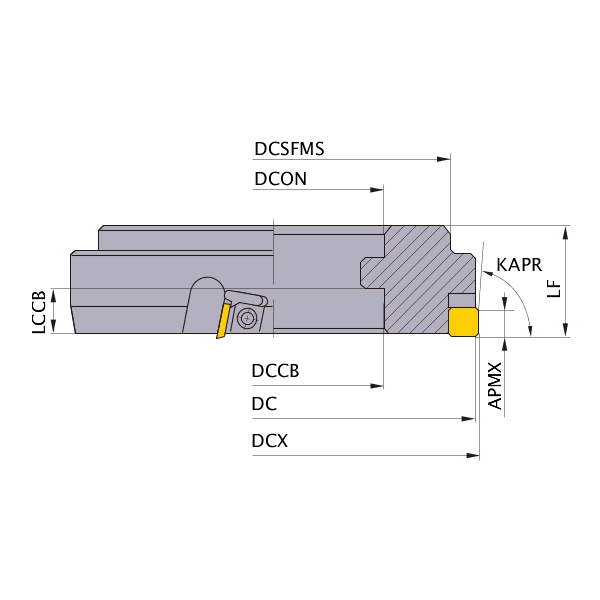

Type1 [Expand]

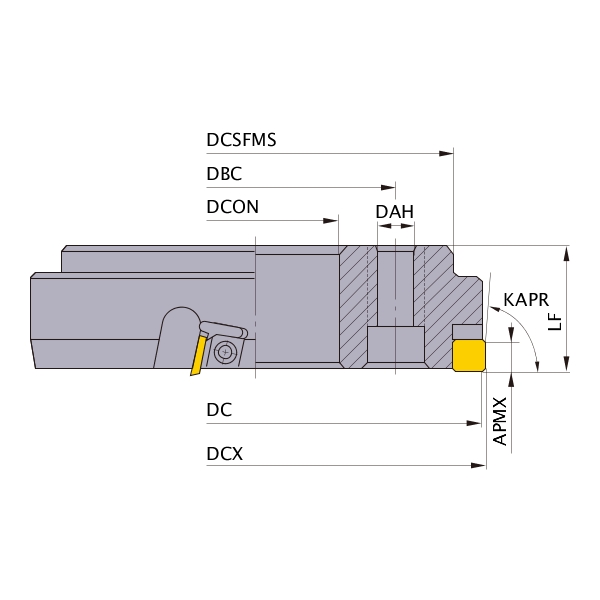

Type2 [Expand]

Type3 [Expand]

  1 2
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
FE404R0408Q Type1 CAD R
FE404R0510Q Type1 CAD R
FE404R0612Q Type1 CAD R
FE404R0816Q Type2 CAD R
FE404R1020Q Type2 CAD R
FE404R1020T Type3 CAD R
FE404R1224Q Type2 CAD R
FE404R1224T Type3 CAD R
FE404R1428T Type3 CAD R
FE404R1428Q Type2 CAD R
FE404R1632Q Type2 CAD R
FE404R1632T Type3 CAD R
FE404R2040Q Type2 CAD R
FE404L0408Q Type1 L
FE404L0510Q Type1 L
FE404L0612Q Type1 L
FE404L0816Q Type2 L
FE404L1020Q Type2 L
FE404L1020T Type3 L
FE404L1224Q Type2 L
Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge D1 IC DMIN CUTDIA DAXX DC DC1 DC2 D2 DCX L1 L L24 FLGT LF OAL LPR D9 DCON L7 CBDP LCCB D8 DAH DAH1 DAH2 DCCB CNT W1 KWW L8 WT ap APMX HTB DCN CDI DCINX BDX CWX LBX D4 D5 DN DCSFMS BD BD1 BD2 BD3 BD4 BD5 B L2 LH L19 LU L3 LBB CDX L20 LDRED L15 LCF L9 HBKW LS H1 H H2 HF HBH F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA R PRFRAD RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
8 100 102 63 31.75 29 12.8 7 3.2 9   86°
10 125 127 63 38.1 29 15.8 7 4.7 9   86°
12 160 162 63 50.8 29 18.8 7 7.6 9   86°
16 200 202 45 125 25 6.1 9   86°
20 250 252 45 175 25 7.8 9   86°
20 250 251 45 110 9.9 9   86°
24 315 317 45 240 25 10.2 9   86°
24 315 316 45 175 12.2 9   86°
28 335 356 45 215 13.7 9   86°
28 355 357 45 280 25 11.8 9   86°
32 400 402 45 325 25 13.3 9   86°
32 400 401 45 260 16.2 9   86°
40 500 502 45 425 25 16.2 9   86°
8 100 102 63 31.75 29 12.8 7 3.2 9   86°
10 125 127 63 38.1 29 15.8 7 4.7 9   86°
12 160 162 63 50.8 29 18.8 7 7.6 9   86°
16 200 202 45 125 25 6.1 9   86°
20 250 252 45 175 25 7.8 9   86°
20 250 251 45 110 9.9 9   86°
24 315 317 45 240 25 10.2 9   86°
  1 2

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition

  • Sold Separately

  • Insert for Rotating Tools

Return to TOP

This website uses cookies in order to improve your experience and keep your session. By clicking on the 'I understand and accept' button on this page you consent the usage of cookies and accept our Privacy Policy .
