Threading >FSL52 >FSL5210R

Threading

FSL52
（F Type Boring Bar）

FSL5210R

Product Information

  • Screw-on type
  • Usable for various applications.
  • Max. depth of groove: 3mm
  • Min.cutting diameter 10mm.

The actual product may differ from the displayed image.

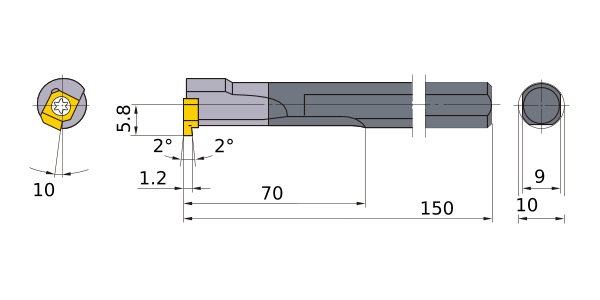

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DMIN 12
DCON 10
LF 150
LU 70
CDX 1
WF 5.8
H 9
CW 1.2
GAMF 10
Peripheral effective cutting edge count: ZEFP 1
