Threading >DPT2 >DPT2140R

Threading

DPT2
（D Type Boring Head）

DPT2140R

Product Information

  • Exchangeable head type.
  • Insert pitch less than 4.5mm
  • Min. cutting diameter: 40mm
  • Pin lock type

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

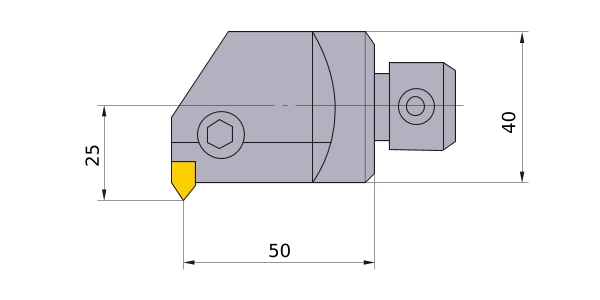

DMIN 50
DCON 40
LF 50
WF 25
RE 0.1
Peripheral effective cutting edge count: ZEFP 1
