Threading >MTH >MTHL2020K4

Threading

MTH
（MT Holder）

MTHL2020K4

Product Information

  • Clamp-on type
  • Positive insert suffers from negligible chattering and thus produces good finished surface.
  • Insert width less than 4.5mm

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

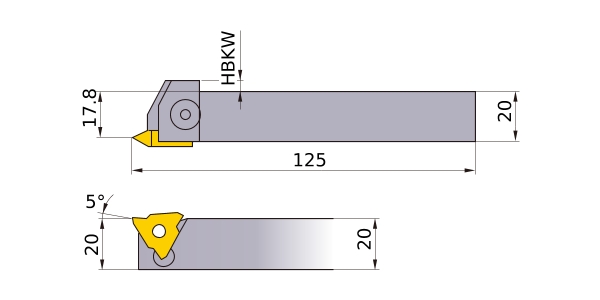

B 20
LF 125
WF 17.8
H 20
HF 20
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
MTHL2020K4
