Insert for Rotating Tools

SEEN53EFER1 EDP:540808

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number SEEN1504EFER1
Sales unit 10
Stock

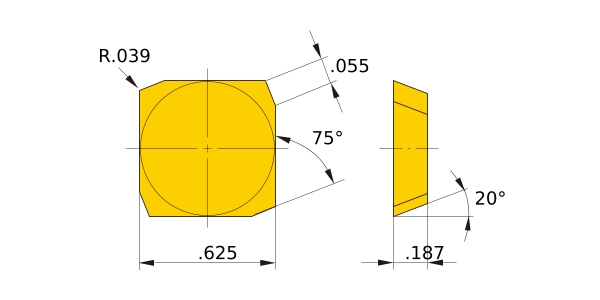

Unit of Length I
IC .625
AN 20°
BS .055
S .187
KRINS 75°
RE .039
3D Detail Model (STP,STL)
CAD data name Download
SEEN1504EFER1
