Insert for Rotating Tools

SEER53AFEN-JS EDP:508867

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MC5020
Order Number SEER1504AFEN-JS
Sales unit 10
Stock

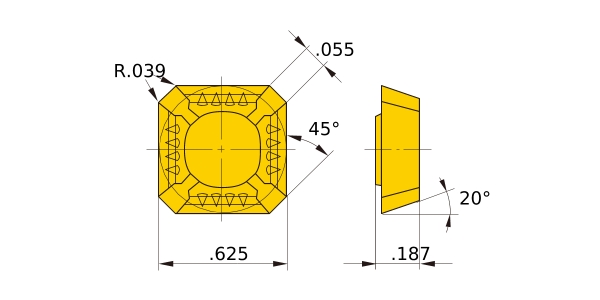

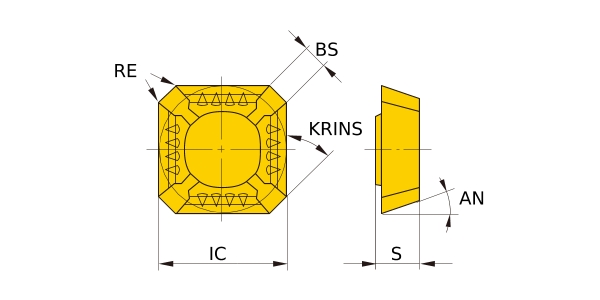

Unit of Length I
IC .625
AN 20°
BS .055
S .187
KRINS 45°
RE .039
Breaker JS
Classification of Grades
Coated・Carbide F7030
3D Detail Model (STP,STL)
CAD data name Download
SEER1504AFEN-JS
