Insert for Rotating Tools

SUFT20R30 EDP:527486

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number SUFT20R30
Sales unit 2
Stock

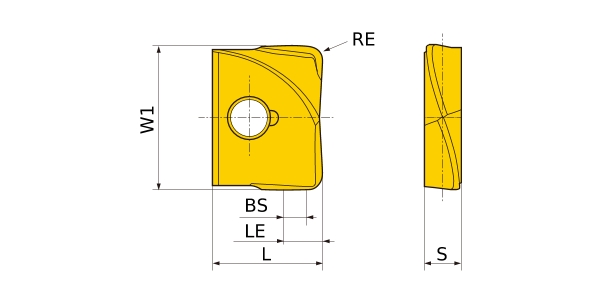

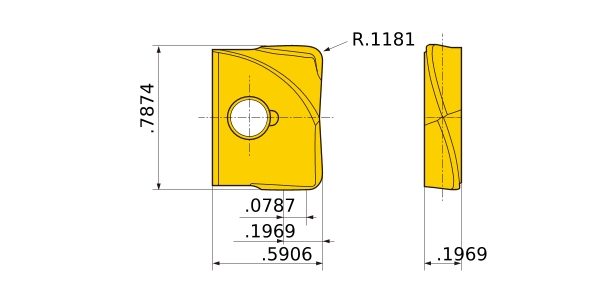

Unit of Length I
D1 .1969
LE .1969
L .5906
W1 .7874
BS .0787
S .1969
RE .1181
Tolerance IC:0 - -.0008 RE:±.0004 L:±.0006
Classification of Grades
Coated・Carbide MP8010
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
