Insert for Rotating Tools

LNGU130820PNEL-M EDP:10528358

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade VP15TF
ANSI LNGU130820PNEL-M
Sales unit 10
Hand L
Stock
Unit of Length M

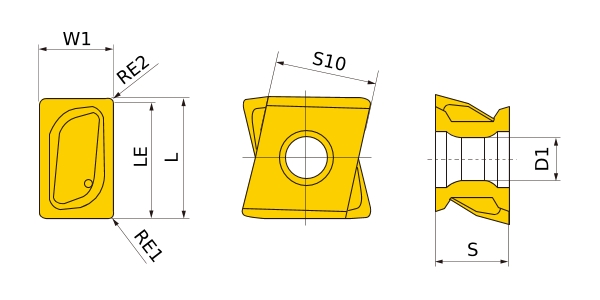

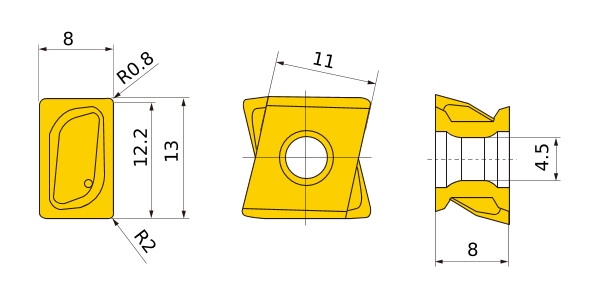

D1 4.5
LE 12.2
L 13
W1 8
S10 11
S 8
RE1 2
RE2 0.8
2D Model (DXF)
CAD data name Download
LNGU130820PNEL-M
CAD

3D Detail Model (STP,STL)
CAD data name Download
LNGU130820PNEL-M
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
