GYAL20K90A-D06 EDP:503222

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch

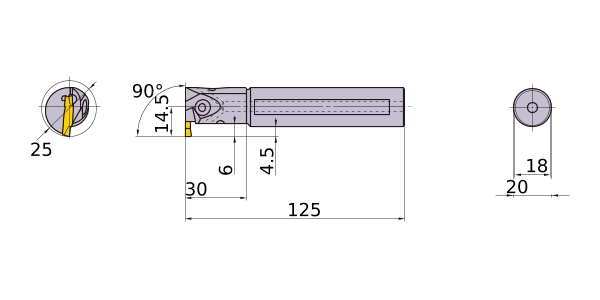

mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length I

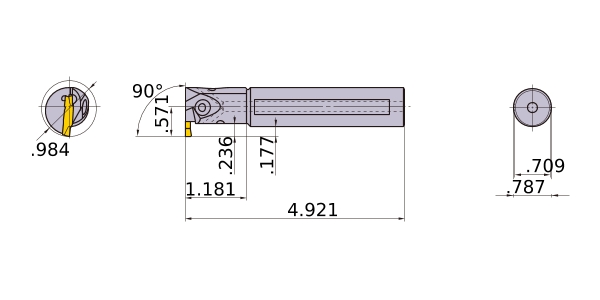

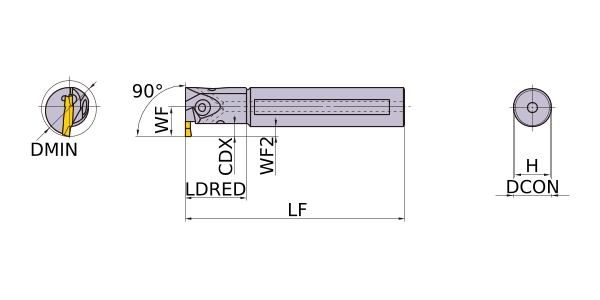

DMIN .984
DCON .787
LF 4.921
CDX .236
LDRED 1.181
WF .571
H .709
CW .079
WF2 .177
