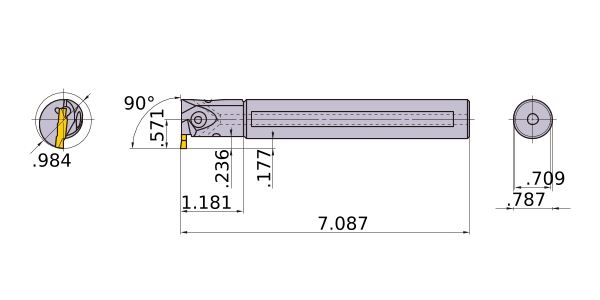

GYAR20Q90A-E06 EDP:503290

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN .984
DCON .787
LF 7.087
CDX .236
LDRED 1.181
WF .571
H .709
CW .098
WF2 .177
