Spare Parts >GYQL2020K00-F06

Spare Parts

GYQL2020K00-F06 EDP:10500606

Product Information

The actual product may differ from the displayed image.

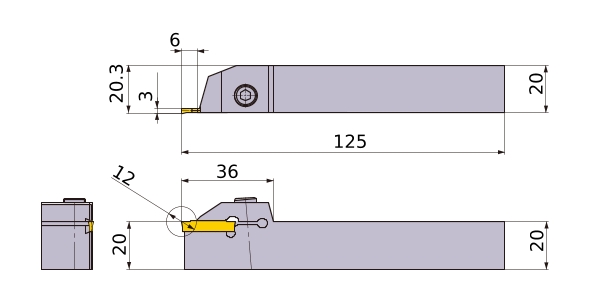

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length I
CUTDIA .472
B .787
LF 4.921
LH 1.417
CDX .236
WF .799
H .787
HF .787
CW .118
2D Model (DXF)
CAD data name Download
GYQL2020K00-F06
