GWTBNUS16-B32 EDP:10588697

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I

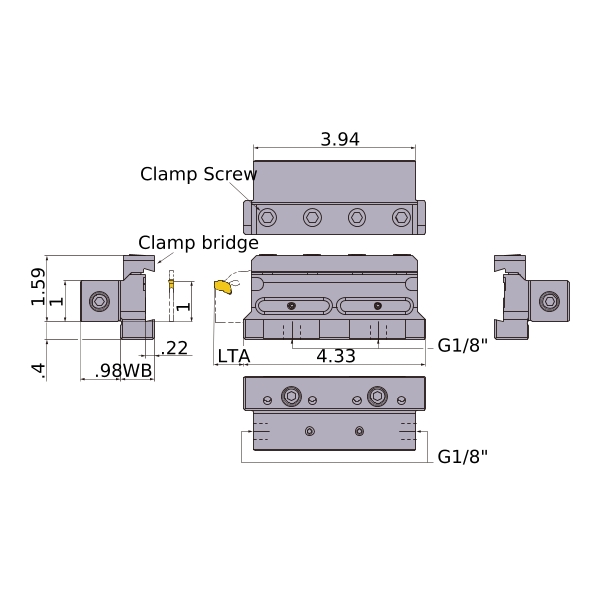

B .98
LF 3.94
OAL 4.33
H 1
HF 1
S11 .4
S12 .22
HTB 1.59
2D Model (DXF)
CAD data name Download
GWTBNUS16-B32
CAD
