Turning Insert >GY2M0300F040N-MM

Turning Insert

GY2M0300F040N-MM EDP:435485

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP20RT
ANSI GY2M0300F040N-MM
Sales unit 10
Hand N
Stock

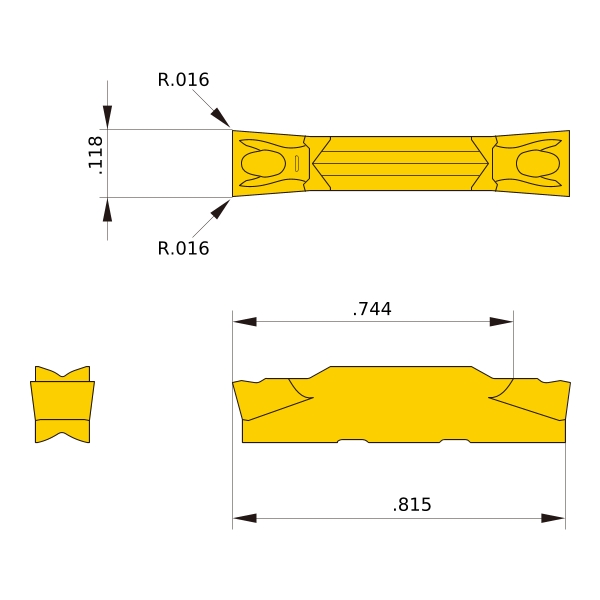

Unit of Length I
CDX .744
L .815
CW .118
REL .016
RER .016
Breaker MM
Tolerance REL:±.002 RER:±.002 CW:±.0012 L:±.004
Classification of Grades
Coated・Carbide MP9015
Coated・Carbide MP9025
Coated・Carbide VP10RT
Coated・Carbide MY5015
Non-coated・Cermet NX2525
3D Detail Model (STP,STL)
CAD data name Download
GY2M0300F040N
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Grooving GY Series
