Turning Insert >TNMG434GH

Turning Insert

TNMG434GH EDP:10639467

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MC6125
Order Number TNMG220416-GH
Sales unit 10
Hand N
Stock
Unit of Length I

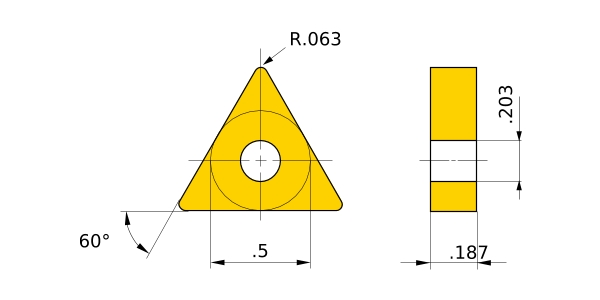

D1 .203
IC .5
EPSR 60°
S .187
RE .063
Breaker GH
Classification of Grades
Coated・Carbide MC6115
2D Model (DXF)
CAD data name Download
TN220416N
CAD
