Turning Insert >NP-VNGA331-TS2

Turning Insert

NP-VNGA331-TS2 EDP:10645994

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Coated CBN
Grade BC8210
Order Number NP-VNGA160404TS2
Sales unit 1
Hand N
Stock
Unit of Length I

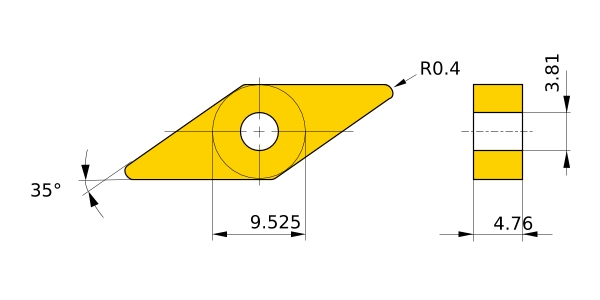

D1 .15
IC .375
EPSR 35°
LE .098
S .187
RE .016
Breaker flat_top
Classification of Grades
CBN・Coated CBN BC8110
CBN・CBN MB4120
2D Model (DXF)
CAD data name Download
VN160404N
CAD
