Turning Insert >VCGT220.5MLS

Turning Insert

VCGT220.5MLS EDP:10643013

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP9025
Order Number VCGT110302M-LS
Sales unit 10
Hand N
Stock
Unit of Length I

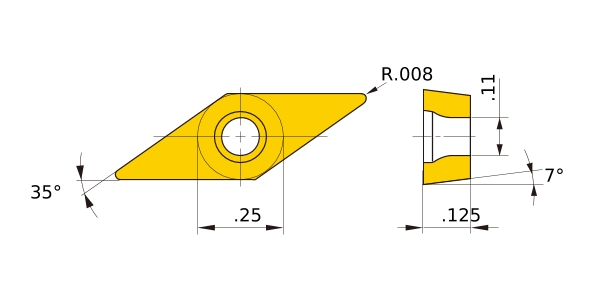

D1 .11
IC .25
EPSR 35°
AN 7°
S .125
RE .008
Breaker LS
Classification of Grades
Coated・Carbide MP9005
Coated・Carbide MP9015
