OUTLINE OF SMALL TOOLS
TOOLS FOR GANG TYPE AUTOMATIC LATHES (FOR EXTERNAL TURNING AND BORING)
SMG Breaker Insert
Nose radii designed with minus tolerance
- Suitable for small parts applications that often require minus tolerance dimensions.
- The order number is shown with the letter “M” that indicates minus tolerance.
- The radius value is printed on the side of the insert label for easy recognition.
Tolerance Corner R
Cutting Off
![Cutting Off](images/small_tool_4.gif)
Back Turning
![Back Turning](images/small_tool_5.gif)
Threading
![Threading](images/small_tool_6.gif)
Back Clamping Mechanism
![Back Clamping Mechanism](images/small_tool_7.gif)
Screw designed for front and back clamping.
Grooving
![Grooving](images/small_tool_8.gif)
Front Turning
![Front Turning](images/small_tool_9.gif)
Tools for a very wide range of small parts machining
External Turning |
Tools for front turning, back turning, grooving, threading, and cutting off |
Internal Turning |
Tools for boring, internal grooving and internal threading |
Drilling |
Drills |
End Milling |
End mills |
Tools for CNC automatic and small lathes
Tool Post Type |
Gang type, turret type, cam type (radial pattern type) |
Tool Size |
Square shank: 8─16 mm
Round shank : less than ø25.4 |
Indexable inserts developed under the concept of "high quality, high efficiency and long tool life."
High Quality |
E class tolerance, sharp cutting edge, high accuracy small corner R, smooth surface finish |
Long Tool Life |
Miracle Coating (VP15TF), cermet (NX2525), cemented carbide (HTi10) |
High Efficiency |
Regrinding not necessary due to the employment of indexable inserts. A wide variety of top cutting edge geometries |
TOOLS FOR CAM TYPE AUTOMATIC LATHES
- The most suitable for the use with cam type automatic lathes (radial pattern tool posts)
- The most suitable for machining of small parts with work diameter 5mm or smaller
- Single holder for front turning, back turning, grooving, threading, and cutting off operations
Front Turning |
Back Turning |
Grooving |
Threading |
Cutting off |
![Front Turning](../../../../../../../common/images2/product_img/product/turning/small_housha1.jpg) |
![Back Turning](../../../../../../../common/images2/product_img/product/turning/small_housha2.jpg) |
![Grooving](../../../../../../../common/images2/product_img/product/turning/small_housha3.jpg) |
![Threading](../../../../../../../common/images2/product_img/product/turning/small_housha4.jpg) |
![Cutting off](../../../../../../../common/images2/product_img/product/turning/small_housha5.jpg) |

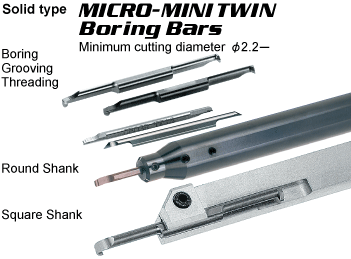

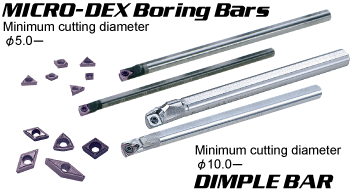

INTERNAL TURNING TOOLS
![Internal Turning Tools](images/small_tool_11.gif)
(Please see the Boring Bar section for these tools.)

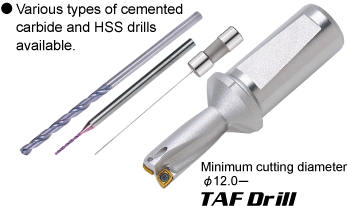

DRILLING TOOLS
![Drilling Tools](images/small_tool_12.gif)
(Please see the Drill section for these tools.)

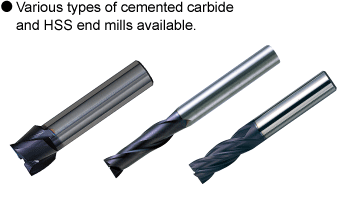

END MILLING TOOLS
![End Milling Tools](images/small_tool_13.gif)
(Please see the Solid End Mill section for these tools.)
