CUTTING RESISTANCE
Workpiece : DIN X5CrNi189 (200HB) Cutting Speed : 60m/min

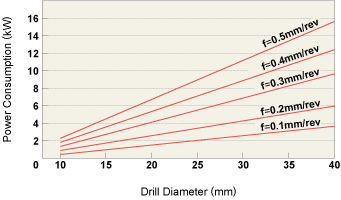

Power Consumption

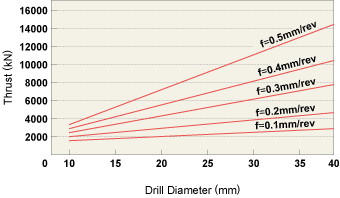

Thrust

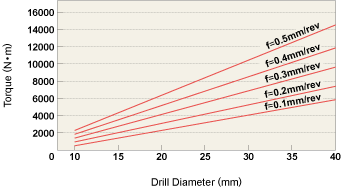

Torque
Reason for Low Thrust Load

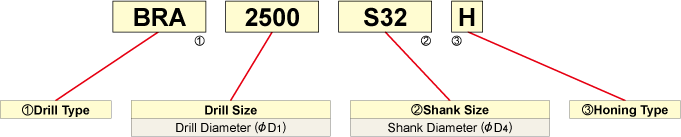

IDENTIFICATION FOR BRA
1) Drill Type
Type |
Description |
Applications
|
Products Name |
Point Angle |
Hole Depth |
Helix Angle |
Relief Angle |
Back
Taper |
Body Dia. |
BRA |
150° |
l/d=3–4 |
20° |
10° |
0.3mm
/100mm |
øD1-0.2mm |
For General Use
(Carbon / Alloy / Stainless Steel) |
BRA![image](../../../../../../../common/images2/product_img/maru_3.gif) ![image](../../../../../../../common/images2/product_img/maru_3.gif) ![image](../../../../../../../common/images2/product_img/maru_3.gif) S![image](../../../../../../../common/images2/product_img/maru_3.gif) ![image](../../../../../../../common/images2/product_img/maru_3.gif) |
2) Shank Size
Type |
Shank Diameter |
Drill Diameter |
S16
|
ø16(h6) |
ø8.0≤D1≤ø14.5 |
S20 |
ø20(h6) |
ø14.5˂D1≤ø18.5 |
S25 |
ø25(h6) |
ø18.5˂D1≤ø23.5 |
S32 |
ø32(h6) |
ø23.5˂1≤ø30.5 |
S40 |
ø40(h6) |
ø30.5˂D1≤ø40.0 |
3) Honing Type
Type |
Honing Width(mm) |
Workpiece |
BRA |
-(Standard)
|
0.15–0.2
|
Carbon Steel, Alloy Steel, Mild Steel |
S |
0.2–0.25 |
– |
M |
0.25–0.3 |
– |
L |
0.3–0.4 |
– |
H |
0.05–0.1 |
Stainless Steel, Heat Resistant Alloy, Titanium Alloy |
G |
0.025–0.08 |
Cast Iron, Aluminum Alloy, Non-Ferrous Metals |
