If an insert with honing other than standard is needed, please order using the symbols below.

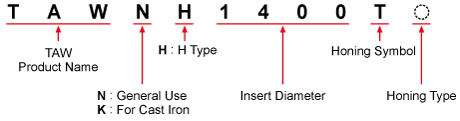

(Insert Order Number)
HONE WIDTH
(Honing Standard)
Honing Type Hone Width (mm)
F 0
G 0.02─0.05
H 0.05─0.10
-(Standard) 0.10─0.15
K 0.15─0.20
S 0.20─0.25
M 0.25─0.30

NOTES ON USE
INSERT INSTALLATION
  • Remove the clamp screw to install the insert. (H type insert)
  • Loosen the clamp screw to install the insert. (U type insert)
  • Correctly mesh the insert and the holder serrations, then slide the insert to the bottom of the slot.

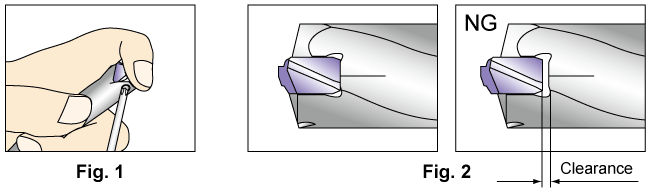

  • Fasten the clamp screw using the torque wrench provided while holding the insert lightly as shown. (Figure 1)
  • Check there is no gap between the bottom of the insert and holder. (Figure 2)
INSERT INSTALLATION

INSERT REPLACEMENT
  • Thoroughly clean the serrations of the holder before installing a new insert.
    Remove heavy dirt in the holder serrations by using the cleaning plate provided.
