PRODUCT CODE DESCRIPTIONS / SYMBOL DESCRIPTIONS

PRODUCT CODE DESCRIPTIONS

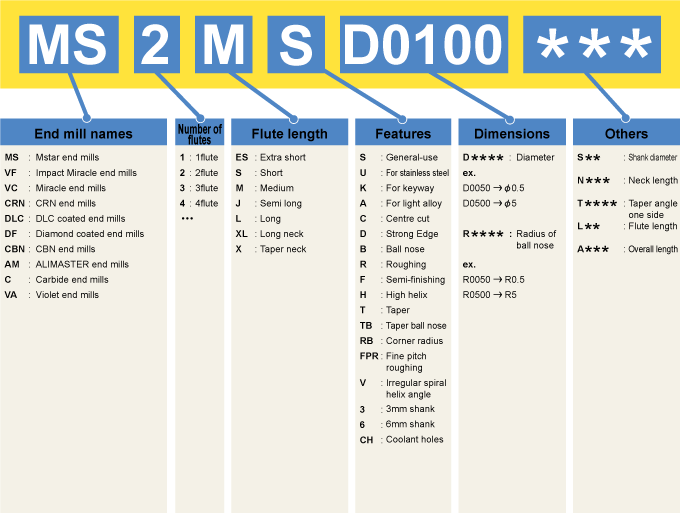

PRODUCT CODE OF END MILLS
PRODUCT CODE OF END MILLS
*Other types are available by special order.

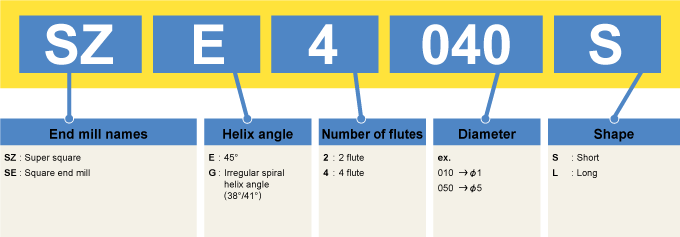

PRODUCT CODE OF END MILLS
*Other types are available by special order.
SYMBOL DESCRIPTIONS
Tool material
Ultra micro grain carbide Ultra micro grain carbide
Ultra micro grain carbide is used as the substrate material.
Cubic boron nitride Cubic boron nitride
Mitsubishi´s original CBN is used.
High hardness powder metallurgy HSS High hardness powder metallurgy HSS
High hardness powder metallurgy HSS is used as the substrate material.
Tolerances
Outside diameter tolerance Outside diameter tolerance
Indicates the diameter tolerance of the end mill.
R tolerance R tolerance
Indicates the radial tolerance of a ball nose end mill.
R tolerance R tolerance
Indicates the radial tolerance of an end mill with a corner radius.
Tolerance of Taper angle Tolerance of Taper angle
Indicates the tolerance of the taper angle.
Tolerance of Point diameter Tolerance of Point diameter
Indicates the tolerance of the point diameter.
R tolerance R tolerance
Indicates the radial tolerance of a cutter with a corner radius.
Shank diameter tolerance Shank diameter tolerance
Indicates the shank diameter tolerance.
Coating
(Al, Ti)N coating (Al, Ti)N coating
(Al,Ti)N offers higher versatility
IMPACT MIRACLE Coating IMPACT MIRACLE Coating
Single phase nano crystal coating technology for higher film hardness and heat resistance.
SMART MIRACLE Coating SMART MIRACLE Coating
New smooth and dense coating technology for high effi ciency milling of diffi cult to cut materials.
MIRACLE Coating MIRACLE Coating
The original Miracle (Al,Ti)N coating. Also suitable for dry cutting.
CRN Coating CRN Coating
Newly developed CrN coating for Copper Electrodes machining.
DLC Coating DLC Coating
Hardness similar to that of CVD diamond coating achieved with high adhesion strength. (Jointly developed with NAGATA SEIKI CO.,LTD.)
Diamond Coating Diamond Coating
Suitable for CFRP and CFRP-Aluminium materials.
Diamond Coating Diamond Coating
Suitable for graphite machining.
Violet Coating Violet Coating
Increased tool life of 2–3 times that of TiN coated products.
Angle and sharp corner edge
Helix angle Helix angle
Indicates the helix angle of the end mill.
Sharp corner edge Sharp corner edge
Indicates the end mill has a sharp corner edge.
Gash land Gash land
Indicates the end mill cutting edge has a gash land.
