OUTLINE OF SMALL TOOLS

TOOLS FOR GANG TYPE AUTOMATIC LATHES (FOR EXTERNAL TURNING AND BORING)

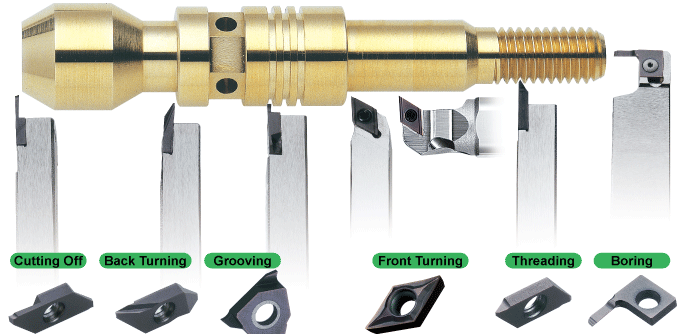

Tools for Gang Type Tool Posts

SMG Breaker Insert
Nose radii designed with minus tolerance
  • Suitable for small parts applications that often require minus tolerance dimensions.
  • The order number is shown with the letter “M” that indicates minus tolerance.
  • The radius value is printed on the side of the insert label for easy recognition.
SMG Breaker Insert
Tolerance Corner R
SMG Breaker Insert


Cutting Off
Cutting Off
Back Turning
Back Turning
Threading
Threading

Back Clamping Mechanism
Back Clamping Mechanism
Screw designed for front and back clamping.
Grooving
Grooving
Front Turning
Front Turning


Tools for a very wide range of small parts machining
External Turning Tools for front turning, back turning, grooving, threading, and cutting off
Internal Turning Tools for boring, internal grooving and internal threading
Drilling Drills
End Milling End mills
Tools for CNC automatic and small lathes
Tool Post Type Gang type, turret type, cam type (radial pattern type)
Tool Size Square shank: 8─16 mm
Round shank : less than ø25.4
Indexable inserts developed under the concept of "high quality, high efficiency and long tool life."
High Quality E class tolerance, sharp cutting edge, high accuracy small corner R, smooth surface finish
Long Tool Life Miracle Coating (VP15TF), cermet (NX2525), cemented carbide (HTi10)
High Efficiency Regrinding not necessary due to the employment of indexable inserts. A wide variety of top cutting edge geometries
TOOLS FOR CAM TYPE AUTOMATIC LATHES
  • The most suitable for the use with cam type automatic lathes (radial pattern tool posts)
  • The most suitable for machining of small parts with work diameter 5mm or smaller
  • Single holder for front turning, back turning, grooving, threading, and cutting off operations
Tools for automatic lathes with radial tool posts

Front Turning Back Turning Grooving Threading Cutting off
Front Turning Back Turning Grooving Threading Cutting off
INTERNAL TURNING TOOLS

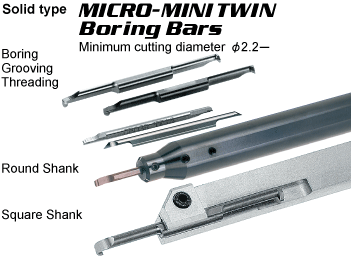

Internal Turning Tools

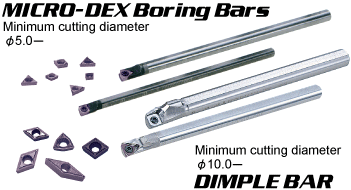

Internal Turning Tools
(Please see the Boring Bar section for these tools.)
DRILLING TOOLS

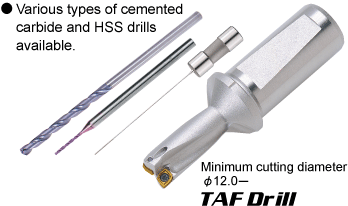

Drilling Tools
(Please see the Drill section for these tools.)
END MILLING TOOLS

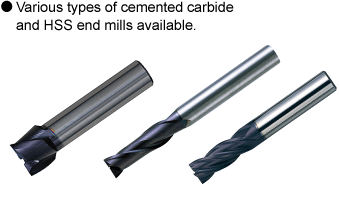

End Milling Tools
(Please see the Solid End Mill section for these tools.)
