THREADING DEPTH

  Features
Advantages Disadvantages

  • Easy to use. (Standard programme for threading.)
  • Superior resistance to vibration. (Constant cutting force.)
  • Long chips generated during the final pass.
  • Complex calculation of cutting depth when changing the number of passes.
  • Reduced load on nose radius during the first half of the passes.
  • Easy chip control.
    (Optional setting of chip thickness)
  • Easy to calculate cutting depth when changing the number of passes.
  • Good chip control.
  • Subject to vibration in the later stages of cutting. (Increased cutting force)
  • In some cases, changing the NC programme is necessary.
*
It is recommended to set the depth of cut of the final pass to 0.05mm ─ 0.025mm.
Large cutting depths can cause vibration, leading to a poor surface finish.

FORMULAE
Formulae to calculate infeed for each pass in a reduced series.
FORMULAE
FORMULAE

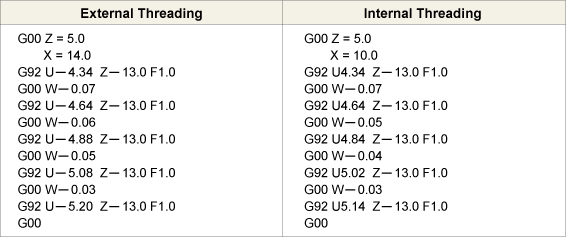

NC PROGRAMME FOR MODIFIED FLANK INFEED
Example) M12×1.0 5 passes modified 5°
NC PROGRAMME FOR MODIFIED FLANK INFEED
