END MILL FEATURES AND SPECIFICATION

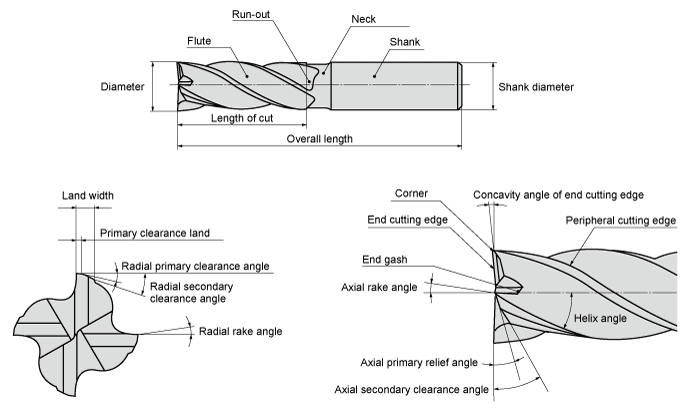

NOMENCLATURE
NOMENCLATURE

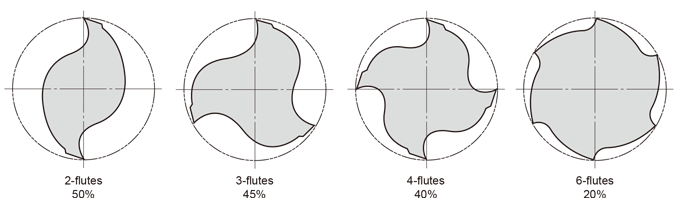

COMPARISON OF SECTIONAL SHAPE AREA OF CHIP POCKET
COMPARISON OF SECTIONAL SHAPE AREA OF CHIP POCKET

CHARACTERISTICS AND APPLICATIONS OF DIFFERENT-NUMBER-OF-FLUTE END MILLS
CHARACTERISTICS AND APPLICATIONS OF DIFFERENT-NUMBER-OF-FLUTE END MILLS
