FUNCTION OF TOOL FEATURES FOR FACE MILLING

CORNER ANGLE AND TOOL LIFE
Corner angle and chip thickness
When the depth of cut and feed per tooth, fz, are fi xed, the larger the corner angle (CH) is, then the thinner the chip thickness (h) becomes (for a 45° CH, it is approx. 75% that of a 0° CH). Therefore as the CH increases, the cutting resistance decreases resulting in longer tool life.

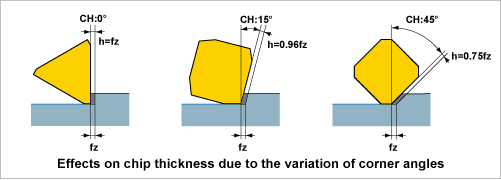

Effects on chip thickness due to the variation of corner angles
Corner angle and crater wear
The table below shows wear patterns for different corner angles. When comparing crater wear for 0° and 45° corner angles, it can be clearly seen that the crater wear for 0° corner angle is larger. This is because if the chip thickness is relatively large, the cutting resistance increases and so promotes crater wear. As the crater develops then cutting edge strength will reduce and lead to fracturing.
  Corner Angle 0° Corner Angle 15° Corner Angle 45°
vc=100m/min
Tc=69min
0°Corner Angle 15°Corner Angle 45°Corner Angle
vc=125m/min
Tc=55min
0°Corner Angle 15°Corner Angle 45°Corner Angle
vc=160m/min
Tc=31min
0°Corner Angle 15°Corner Angle 45°Corner Angle
Workpiece :
Alloy steel (287HB)
Tools :
D1=125
Insert :
M20Cemented Carbide
Cutting Conditions :
ap=3.0mm
ae=110m
fz=0.2m/tooth
Dry Cutting
