FUNCTION OF TOOL FEATURES FOR TURNING

FLANK ANGLE
Flank angle prevents friction between the flank face and workpiece resulting in a smooth feed.

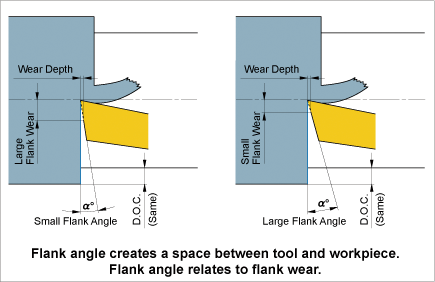

Flank angle creates a space between tool and workpiece.
Flank Angle and Flank Wear Relationship


Effects of Flank Angle
  1. Increasing flank angle decreases flank wear occurrence.
  2. Increasing flank angle lowers cutting edge strength.
When to Decrease Flank Angle
  • Hard workpieces.
  • When cutting edge strength is required.
When to Increase Flank Angle
  • Soft workpieces.
  • Workpieces suffer easily from work hardening.
