FUNCTION OF TOOL FEATURES FOR TURNING

RAKE ANGLE
Rake angle is the cutting edge angle that has a large effect on cutting resistance, chip disposal, cutting temperature and tool life.

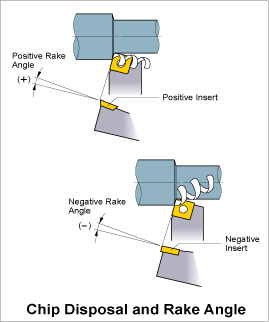

Chip Disposal and Rake Angle
graph

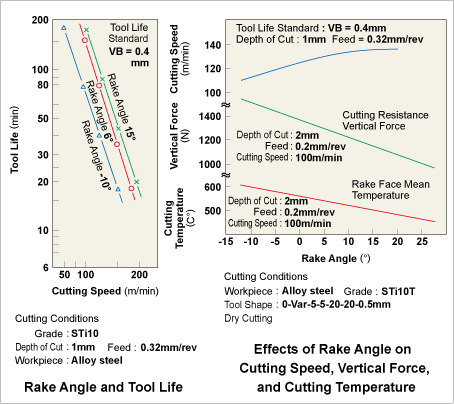

Effects of Rake Angle
  1. Increasing rake angle in the positive (+) direction improves sharpness.
  2. Increasing rake angle by 1° in the positive (+) direction decreases cutting power by about 1%.
  3. Increasing rake angle in the positive (+) direction lowers cutting edge strength and in the negative (-) direction increases cutting resistance.
When to Increase Rake Angle in the Negative (-) Direction
  • Hard workpiece.
  • When cutting edge strength is required such as in interrupted cutting and uncut surface cutting.
When to Increase Rake Angle in the Positive (+) Direction
  • Soft workpiece.
  • Workpiece is easily machined.
  • When the workpiece or the machine have poor rigidity.
