TOOLING SYSTEM
CARTRIDGE
LL ISO type Lever lock type PCLN Type
Type
Order Number
Stock

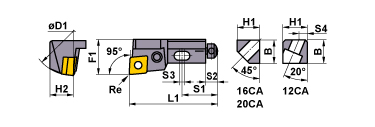

Dimensions(mm)
Standard
Corner
Radius
Re(mm)
Min. Cutting
Diameter
D1(mm)
Insert Number
CAD Data
Download
H1
B
L1
S1
S2
S3
S4
H2
F1
PCLN
PCLNR12CA12
15.5
16
55
20
8
2
6
12
20
0.8
50
CNMA
CNMG
CNMM
CNGG
1204__
PCLNL12CA12
15.5
16
55
20
8
2
6
12
20
0.8
50
1204__
PCLNR16CA12
16
17
63
25
8
2.5
-
16
25
0.8
60
1204__
PCLNL16CA12
16
17
63
25
8
2.5
-
16
25
0.8
60
1204__
PCLNR20CA12
20
19
70
30
10
2.5
-
20
25
0.8
70
1204__
Stock
: Inventory maintained in Japan.
