TOOLING SYSTEM
CARTRIDGE

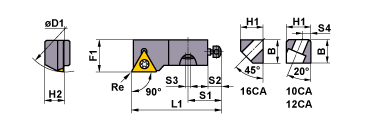

SS ISO type Screw on type STGP Type
Type
Order Number
Stock
Dimensions(mm)
Standard
Corner
Radius
Re(mm)
Min. Cutting
Diameter
D1(mm)
Insert Number
CAD Data
Download
H1
B
L1
S1
S2
S3
S4
H2
F1
STGP
STGPR10CA11
12.5
11
50
20
8
2
5
10
14
0.4
35
TPMX
TPGX
1103__
STGPR12CA16
15.5
16
55
20
8
2
6
12
20
0.8
50
TPMT
TPGX
1603__
STGPR16CA16
16
17
63
25
8
2
-
16
25
0.8
55
1603__
Stock
: Inventory maintained in Japan.
