OUTLINE OF SMALL TOOLS

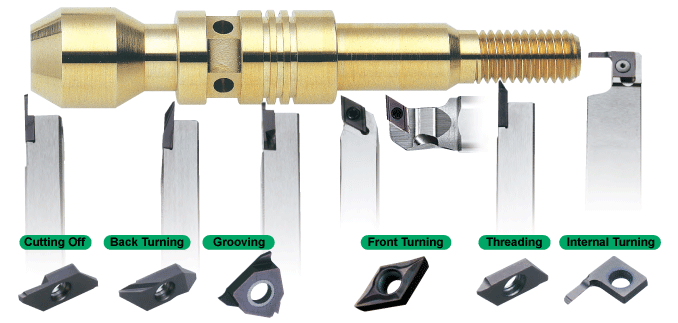

TOOLS FOR GANG TYPE TOOL POSTS
SMG Breaker Insert
![SMG Breaker Insert](images/small_tuki.gif)
Tolerance Corner R
![Tolerance Corner R](images/small_corner.gif)
Cutting Off
![Cutting Off](images/small_tuki.jpg)
Back Turning
![Back Turning](images/small_ato.jpg)
Threading
![Threading](images/small_neji.jpg)
Back Clamping Mechanism
![Back Clamping Mechanism](images/small_clanp.jpg)
Grooving
![Grooving](images/small_mizo.jpg)
Front Turning
![Front Turning](images/small_mae.jpg)
Tools responding to a wide range of small parts machining operations
External Turning |
Tools for front turning, back turning, grooving, threading, and cutting off |
Internal Turning |
Tools for boring, internal grooving, and internal threading |
Drilling |
Drills |
End Milling |
End mills |
Tools for front turning, back turning, grooving, threading, and cutting off
Tool Post Type |
Gang type, Turret type
Radial type |
Tool Size |
Square holder : .375─.625 inch (8 ─ 16 mm)
Round holder : ≤ ø1 inch(ø25.4 mm) |
Indexable inserts developed under the concept of "high quality, high efficiency, and long tool life."
High Quality |
E class tolerance, sharp cutting edge, high accuracy small corner R, smooth surface finish. |
Long Tool Life |
Miracle Coating (VP15TF), cermet (NX2525), cemented carbide (HTi10). |
High Efficiency |
Regrinding not necessary due to the employment of indexable inserts.
A wide variety of top cutting edge geometries. |
Tools for automatic lathes with radial tool posts
- The most suitable for the automatic lathes with radial tool posts.
- The most suitable for machining of small parts with work diameter Ø5 mm (.197 inch) or smaller.
- Single holder responds to front turning, back turning, grooving, threading, and cutting off operations.
Front Turning |
Back Turning |
Grooving |
Threading |
Cutting off |
![Front Turning](../../../../../../../common/images2/product_img/product/turning/small_housha1.jpg) |
![Back Turning](../../../../../../../common/images2/product_img/product/turning/small_housha2.jpg) |
![Grooving](../../../../../../../common/images2/product_img/product/turning/small_housha3.jpg) |
![Threading](../../../../../../../common/images2/product_img/product/turning/small_housha4.jpg) |
![Cutting off](../../../../../../../common/images2/product_img/product/turning/small_housha5.jpg) |
Internal Turning Tools
Drilling Tools
Solid Carbide Drills
End Milling Tools
Solid Carbide End Mills
![End Milling Tools](images/smalltool_gaiyou_4.jpg)
