CEMENTED CARBIDE

  • Available in this range are UTi20T grades suitable for steel and cast iron, HTi grades for cast iron, non ferrous metal and nonmetals, and RT grades for heat-resistant alloys and titanium alloy.
K Class Grade
K Class Grade (WC-Co)
P,M Class Grade
P,M Class Grade (WC-TiC-TaC-Co)

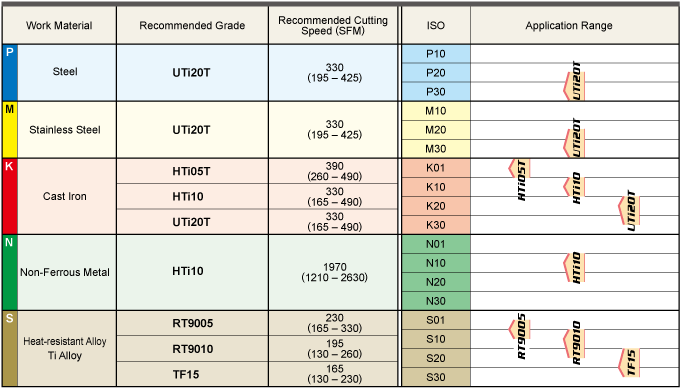

SELECTION STANDARD
TURNING
TURNING

MAIN COMPONENT AND APPLICATION
P series for steel cutting, K series for cast iron cutting and M series for general cutting.
MAIN COMPONENT AND APPLICATION

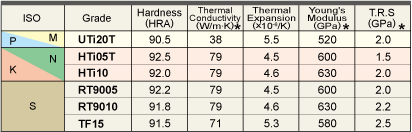

GRADE CHARACTERISTICS
GRADE CHARACTERISTICS
Tool Life (min)
Tool Life (min)
* 1GPa = 102kg/mm2, 1W/m·K=2.39 x 10-3cal/cm · sec ·°C
