COATED CBN SERIES

MBC010 / MBC020
FEATURES
mbc010
MBC010
is a coated CBN grade for hardened steels. Offering high wear resistance enabling high-speed cutting.
MBC010 is a micrograin CBN resulting in a "high-grade" for excellent surface finish.
mbc020
MBC020 is a general purpose coated CBN grade suitable for machining hardened steel. It covers a wide range of applications from continuous to light interrupted cutting.
The CBN substrate with high cutting edge toughness and the coating based on MIRACLE coating technology improves wear resistance and allows MBC020 to cover a wider range of machining applications than conventional CBN grades.
Grade Grade Features and Application Main Component Coating Layer
mbc010 Coated CBN for High Speed Continuous Cutting
MBC010 makes the best use of special ceramic binder structure, resulting in high wear resistance. This enables continuous machining at high speed of over 985 SFM.
CBN
(Micro Grain)
TiN Al
2O3
TiN
mbc020 Coated CBN for general cutting (First recommendation)
Uses a CBN substrate that has high cutting edge toughness. The TiAlN based coating delivers superb wear resistance. MBC020 is the first recommendation for hardened steels.
CBN
(Micro Grain)
TiN Al2O3
TiAlN

CUTTING PERFORMANCE
Continuous Cutting
<Cutting Condition>
Workpiece
: Hardened Steel (60HRC)
Feed
: .004IPR
Depth of Cut
: .0039inch
External Continuous Cutting

Wet Cutting

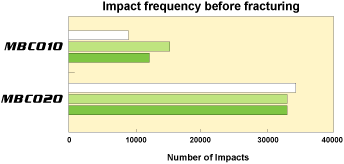

Interrupted Cutting
<Cutting Condition>
Workpiece
: Hardened Steel (60HRC)
External Interrupted Cutting. 8 Grooves

Cutting Speed
: 490SFM
Feed
: .006IPR
Depth of Cut
: .0079inch
Dry Cutting



mbc010
mbc010
WEAR RESISTANCE
WEAR RESISTANCE
<Cutting Condition>
Workpiece
: Hardened Steel (60HRC)
Insert
: NP-CNGA432-GS2
Cutting speed
: 985SFM
Feed
: .002IPR
Depth of Cut
: .004inch
Dry Continuous Cutting

SURFACE ROUGHNESS
URFACE ROUGHNESS
<Cutting Condition>
Workpiece
: Hardened Steel (60HRC)
Insert
: NP-CNGA432-GS2
Cutting speed
: 985SFM
Feed
: .002IPR
Depth of Cut
: .004inch
Dry Continuous Cutting


MBC010 employs TiN based coating for superior, consistent surface finishes.

mbc020
mbc010
TOUGHNESS
WEAR RESISTANCE
<Cutting Condition>
Workpiece
: Hardened Steel (60HRC)
Insert
: NP-CNGA432-GA4
Cutting speed
: 720SFM
Feed
: .004IPR
Depth of Cut
: .004inch
Dry Continuous Cutting

URFACE ROUGHNESS
<Cutting Condition>
Workpiece
: Hardened Steel (60HRC)
Insert
: NP-CNGA432-GA4
Cutting speed
: 655SFM
Feed
: .004IPR
Depth of Cut
: .004inch
Dry Cutting


MBC020 exhibits excellent cutting performance for a wide range of applications from continuous through to interrupted machining.
