Boring >FSCLC_P >FSCLP1210L-08S

Boring

FSCLC_P
(Dimple Bar)

FSCLP1210L-08S

Product Information

  • l/d is 3 to 5 times the diameter (Carbide shank is 7 to 8 times the diameter).
  • Employs positive insert 5°,7°,11°.
  • Excellent vibration resistance due to light dimple head.
  • Chip disposal is improved by having two channels for chip evacuation.

The actual product may differ from the displayed image.

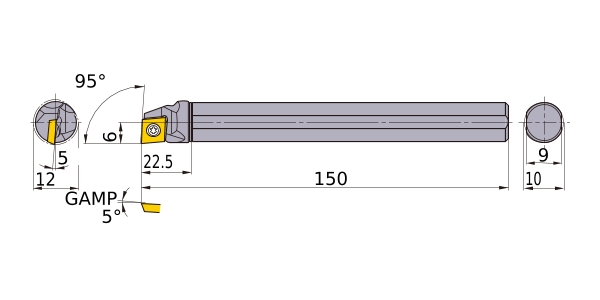

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand L
Stock
Unit of Length M
DMIN 12
DCON 10
KAPR 95°
LF 150
LDRED 22.5
WF 6
H 9
GAMF 5
RE 0.4
Peripheral effective cutting edge count: ZEFP 1
Insert Number CP__0802
2D Model (DXF)
CAD data name Download
FSCLP1210L-08S
CAD

3D Detail Model (STP,STL)
CAD data name Download
FSCLP1210L-08S
CAD

3D Light Model (STP,STL)
CAD data name RE Download
FSCLP1210L-08S_MR0_4
0.4 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
