Boring >FSDQC_E >FSDQC1612L-07E

Boring

FSDQC_E
（Dimple Bar）

FSDQC1612L-07E

Product Information

  • l/d is 3 to 5 times the diameter (Carbide shank is 7 to 8 times the diameter).
  • Chip disposal is improved by having two channels for chip evacuation.
  • Employs positive insert 5°,7°,11°.
  • Excellent vibration resistance due to light dimple head.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

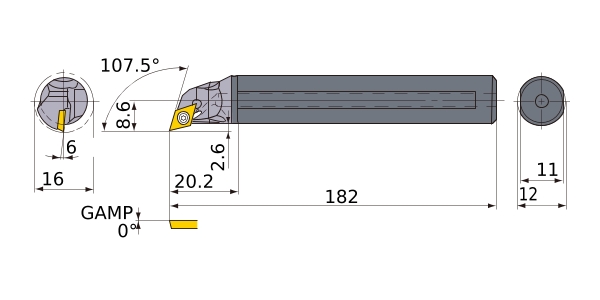

DMIN 16
DCON 12
KAPR 107.5°
LF 182
LDRED 20.2
WF 8.6
H 11
WF2 2.6
GAMF 6
RE 0.4
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__0702
2D Model (DXF)
CAD data name Download
FSDQC1612L-07E
