Boring >PDUN >A25RPDUNR11

Boring

PDUN
（P Type Boring Bar）

A25RPDUNR11

Product Information

  • Economical negative insert.
  • Lever lock type.
  • l/d is 3 times the diameter.
  • ISO standard.

The actual product may differ from the displayed image.

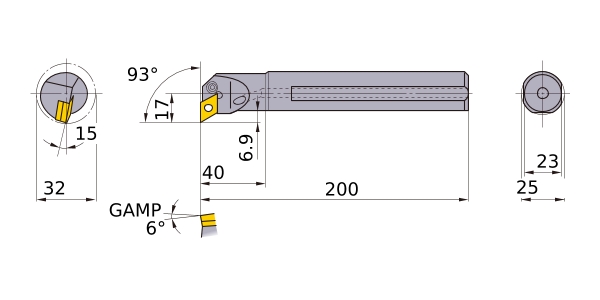

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DMIN 32
DCON 25
KAPR 93°
LF 200
LDRED 40
WF 17
H 23
WF2 6.9
GAMF 15
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number DN__1104
2D Model (DXF)
CAD data name Download
A25RPDUNR11
CAD
