Boring >PDZN >A32SPDZNR15

Boring

PDZN
（P Type Boring Bar）

A32SPDZNR15

Product Information

  • l/d is 3 times the diameter.
  • ISO standard.
  • Economical negative insert.
  • Lever lock type.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

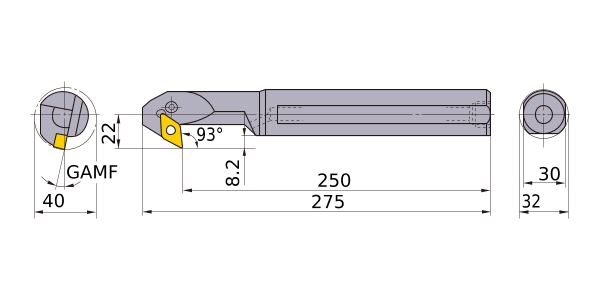

DMIN 40
DCON 32
KAPR 93°
LF 250
OAL 275
WF 22
H 30
WF2 8.2
GAMF 13°
Peripheral effective cutting edge count: ZEFP 1
Insert Number DN__1504
