Boring >PSKN >A32SPSKNR12

Boring

PSKN
（P Type Boring Bar）

A32SPSKNR12

Product Information

  • Lever lock type.
  • l/d is 3 times the diameter.
  • ISO standard.
  • Economical negative insert.

The actual product may differ from the displayed image.

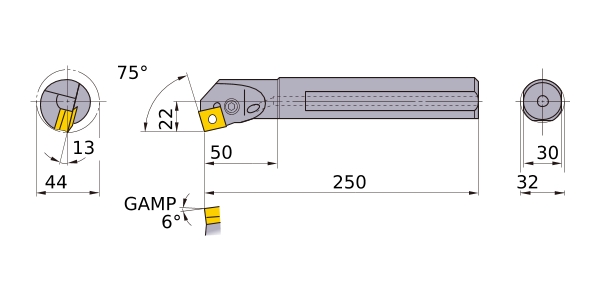

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DMIN 44
DCON 32
KAPR 75°
LF 250
LDRED 50
WF 22
H 30
GAMF 13
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number SN__1204
2D Model (DXF)
CAD data name Download
A32SPSKNR12
CAD
