Boring >SCLC_C >C04GSCLCR03

Boring

SCLC_C
（Micro Dex）

C04GSCLCR03

Product Information

  • 7°positive insert.
  • Carbide shank
  • Easy-to-use tool geometries.
  • The most suitable for machining of small parts
  • l/d is 5 times the diameter.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR

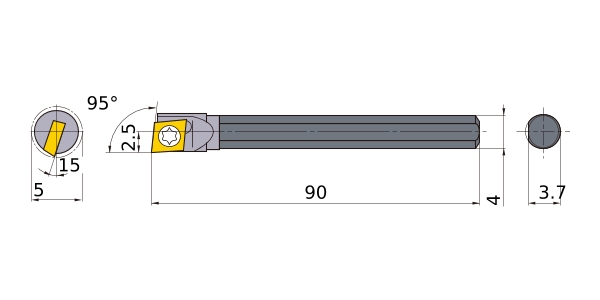

ANSI C04G-SCLCR03
Hand R
Stock
Unit of Length M
DMIN 5
DCON 4
KAPR 95°
LF 90
WF 2.5
H 3.7
GAMF 15
RE 0.2
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__03S1
2D Model (DXF)
CAD data name Download
C04GSCLCR03
CAD
