Boring >S_SCLC >S20QSCLCL09

Boring

S_SCLC
（S Type Boring Bar）

S20QSCLCL09

Product Information

  • Screw-on type
  • ISO standard.
  • 7°positive insert.
  • l/d is 3 to 5 times the diameter (up to 7 times with the carbide shank).

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

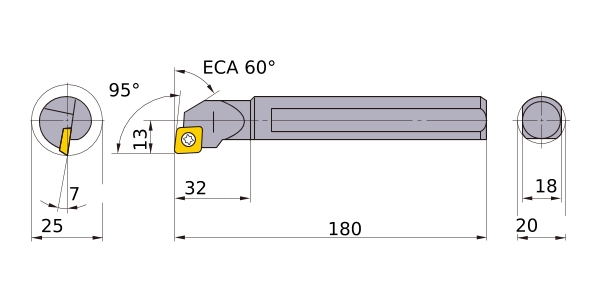

DMIN 25
DCON 20
KAPR 95°
LF 180
LDRED 32
WF 13
H 18
GAMF 7
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__09T3
