Boring >S_SDQC >S12KSDQCL07

Boring

S_SDQC
（S Type Boring Bar）

S12KSDQCL07

Product Information

  • ISO standard.
  • 7°positive insert.
  • Screw-on type
  • l/d is 3 to 5 times the diameter (up to 7 times with the carbide shank).

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

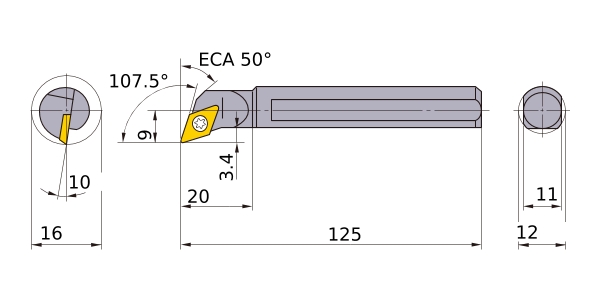

DMIN 16
DCON 12
KAPR 107.5°
LF 125
LDRED 20
WF 9
H 11
WF2 3.4
GAMF 10
RE 0.4
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__0702
2D Model (DXF)
CAD data name Download
S12KSDQCL07
