Boring >S_SDUC_C >C25TSDUCR15

Boring

S_SDUC_C
（S Type Boring Bar）

C25TSDUCR15

Product Information

  • ISO standard.
  • 7°positive insert.
  • Screw-on type
  • l/d is 3 to 5 times the diameter (up to 7 times with the carbide shank).

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

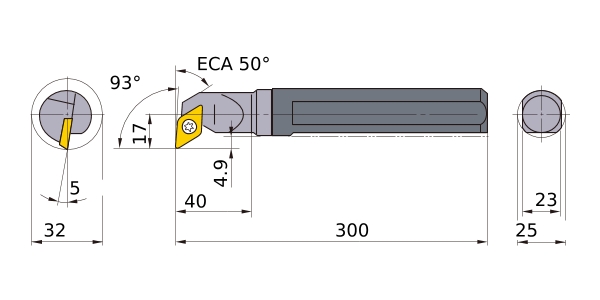

DMIN 32
DCON 25
KAPR 93°
LF 300
LDRED 40
WF 17
H 23
WF2 4.9
GAMF 5
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__1504
2D Model (DXF)
CAD data name Download
C25TSDUCR15
CAD
