Boring >S_SDUC >S20QSDUCL11

Boring

S_SDUC
（S Type Boring Bar）

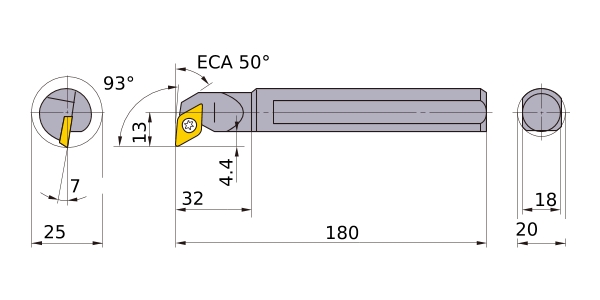

S20QSDUCL11

Product Information

  • ISO standard.
  • 7°positive insert.
  • Screw-on type
  • l/d is 3 to 5 times the diameter (up to 7 times with the carbide shank).

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M
DMIN 25
DCON 20
KAPR 93°
LF 180
LDRED 32
WF 13
H 18
WF2 4.4
GAMF 7
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__11T3
2D Model (DXF)
CAD data name Download
S20QSDUCL11
CAD
