Boring >DVUN >A40T-DVUNR16

Boring

DVUN
（Double Clamp Dimple Bar）

A40T-DVUNR16

Product Information

  • Holds inserts securely.
  • New double clamp type.
  • Excellent cutting edge repeatability.
  • Economical negative insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

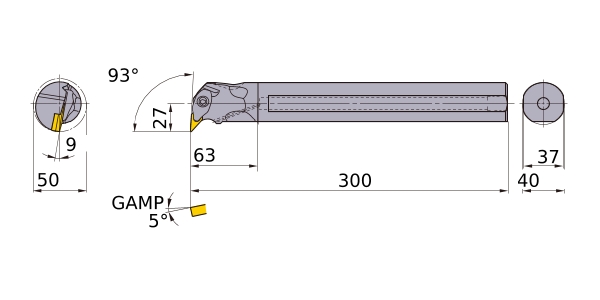

DMIN 50
DCON 40
KAPR 93°
LF 300
LDRED 63
WF 27
H 37
GAMF 9
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number VN__1604
