Boring >DWLN >A25R-DWLNR06

Boring

DWLN
（Double Clamp Dimple Bar）

A25R-DWLNR06

Product Information

  • New double clamp type.
  • Holds inserts securely.
  • Excellent cutting edge repeatability.
  • Economical negative insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

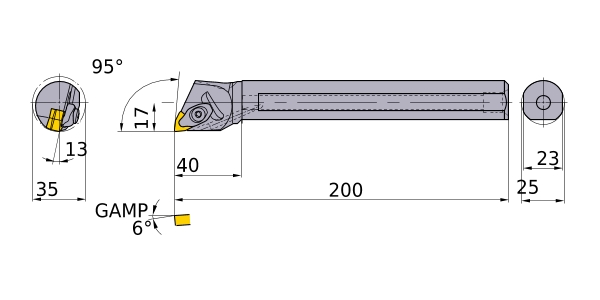

Unit of Length M
DMIN 35
DCON 25
KAPR 95°
LF 200
LDRED 40
WF 17
H 23
GAMF 13
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number WN__0604
2D Model (DXF)
CAD data name Download
A25R-DWLNR06
CAD
